JUST FINISHED MY SLIDER

skobi1 · Addict Joined: 15 Jan 2003 Posts: 639 City: eugene, or

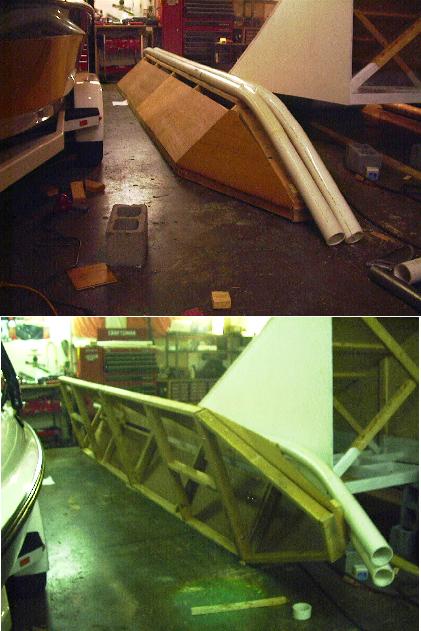

i finished my kicker last week and soon after got bored. what next you ask? slider. check it out at http://www.wakepics.com/member/SKOBI1 let me know what you think. im going to float it with four drums.

JHrod · Wakeboarder.com Freak Joined: 12 Jan 2003 Posts: 3144

looks like a great slider-----wanna build me one Question

Jeff · Addict Joined: 13 Jan 2003 Posts: 678 City: Long Island

nice, i like the kicker too, do you have any plans for the slider you could send me?

ghettolake415 · Posted: Jan 18, 2003 7:58 pm Post subject:

both look really nice!!!!!!!!!!!

bluefish86 · Posted: Jan 18, 2003 8:15 pm Post subject:

How did you bend the PVC pipe?

skobi1 · Addict Joined: 15 Jan 2003 Posts: 639 City: eugene, or

i tried a couple of different methods of bending the pipe. the first was to insert a heat gun into the end of the pipe and plug the other end, this worked ok but it created a hot spot about 18" from the end of the pipe. i needed the heat further up. so on the first pipe i ended up just holding the heat gun outside the pipe and heating the area i wanted to bend. this took FOREVER! on the second one i ended up borrowing a infrared heatlamp from the body shop next door, that was way easier. i would heat one side of the pipe first, then move the heat lamp to the other side and use the heat gun to keep the first side hot. once pvc gets to the right temp it is very pliable.

skobi1 · Addict Joined: 15 Jan 2003 Posts: 639 City: eugene, or

josh- the shipping would kill ya

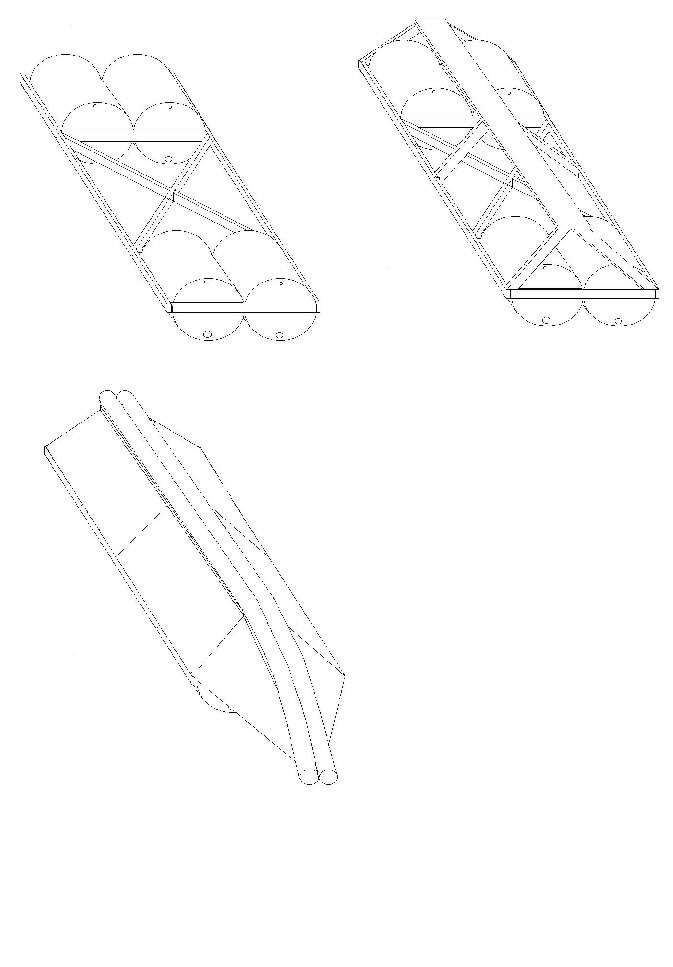

jeff- i drew this up on windows paint, since the attachments are up again ill try and attach them. i devieated from them a little bit but that dosent really matter all i did was to build it in sections 8' long so i could break it down and haul it in my p.u.

bizzuck · Addict Joined: 12 Jan 2003 Posts: 593

sweet slider, looks alot like the one we built last year, just make sure you get good barrells, mine always leak.... you talk about a pain in the butt! Shocked

Gbgonzal138 · Addict Joined: 12 Jan 2003 Posts: 887

I wish my lake would alow sliders and kickers but they would probably say that they are hazardous or somthing. nice rail.

Jeff · Addict Joined: 13 Jan 2003 Posts: 678 City: Long Island

skobi1 how did you attach the pvc to the wood on the base of teh slider

bryce_04 · Posted: Feb 01, 2003 7:14 pm Post subject:

They look nice man, good work.

skobi1 · Addict Joined: 15 Jan 2003 Posts: 639 City: eugene, or

Jeff, like this:

BoardC3 · Soul Rider Joined: 28 Jan 2003 Posts: 380 City: Ithaca, NY

daamn thats hot i wish i had one. how much did that cost you if you dont mind me asking? by the way i love the kicker you made. Both of your sliders look very professional.

skobi1 · Addict Joined: 15 Jan 2003 Posts: 639 City: eugene, or

Thanks, they are the first ones I've built. I think I ended up with about 200.00 in the slider. I really didn't add it all up. i think I used 20-25 2x4s, 5 10' pieces of 5" pvc, 1/2 gallon stainblocker primer, and 1/2 gallon oil based blue paint.

The kicker was considerably more because of the plywood inlolved for the sides and surface.

Ghettowedo · Newbie Joined: 29 Jan 2003 Posts: 4 City: Yuma, AZ

that camera mount is sweeet as hell too

I am Sam · Posted: Feb 02, 2003 5:41 am Post subject:

neato slider, i hope to build one when i get the time, and money:(

Jeff · Addict Joined: 13 Jan 2003 Posts: 678 City: Long Island

thanx skobi1, one more question though, what way did you drill the bolts threw, from teh top or bottom of the pvc

Brian B. · Posted: Feb 02, 2003 11:26 am Post subject:

hey could you throw out the dimensions for the kicker and the slider for me, i need to know how wide so i dont screw up for the drums thanks

skobi1 · Addict Joined: 15 Jan 2003 Posts: 639 City: eugene, or

I drilled the blocks first then set the pvc where i wanted it and drilled from the bottom. If my memory serves me correct the metal drums are 22 1/2" wide on the rim, so i built the rectangles to house the drums at 22 " even. I'll try do remember to double check this measurement tomorrow and post it for sure. I know it dosnt sound like much but a half inch cuts quite a bit off of a circle.

Jeff · Addict Joined: 13 Jan 2003 Posts: 678 City: Long Island

skobi1, can you post teh plans again, they got deleated before i could print them out

ticker · Newbie Joined: 10 Feb 2003 Posts: 1

LOOKS GREAT!..I WAS WANTING TO BUILD SOMETHING JUST LIKE IT....DO YOU HAVE ANY PLANS YOU COULD E-MAIL ME...TICKERKANE@NETZERO.NET
ПОРНОФИЛЬМЫ НА DVD "Лишение девственности"
Virginity and defloration DVD

matt 4 · Posted: Feb 10, 2003 10:12 am Post subject:

how much do you normally spend for drums, i am planning on making one this summer, the wood isint gonna be a problem, but i dont know where to find anything to float it with that will be a resinable price
