 Posted: Mar 30, 2008 9:41 pm Post subject: My first attempt at making a wakeskate, using a vacuum press |
 |
|
I decided that I should try wakeskating this summer, so I made my own board. It turned out pretty well, but I wish I would have made a 3 stage rocker instead of a continuous one. Maybe next time.
This has about 2" of rocker to it, and it cups from side to side about a 1/4". I used 4 pieces of 1/8" baltic birch and glued it up with titebond III (waterproof) glue. I used epoxy to seal it, but I almost wish that I hadn't. It was a pain to work with, and I had a very difficult time getting the results that I wanted from it.
Tips or suggestions for next time would be much appreciated.
Here is the form:

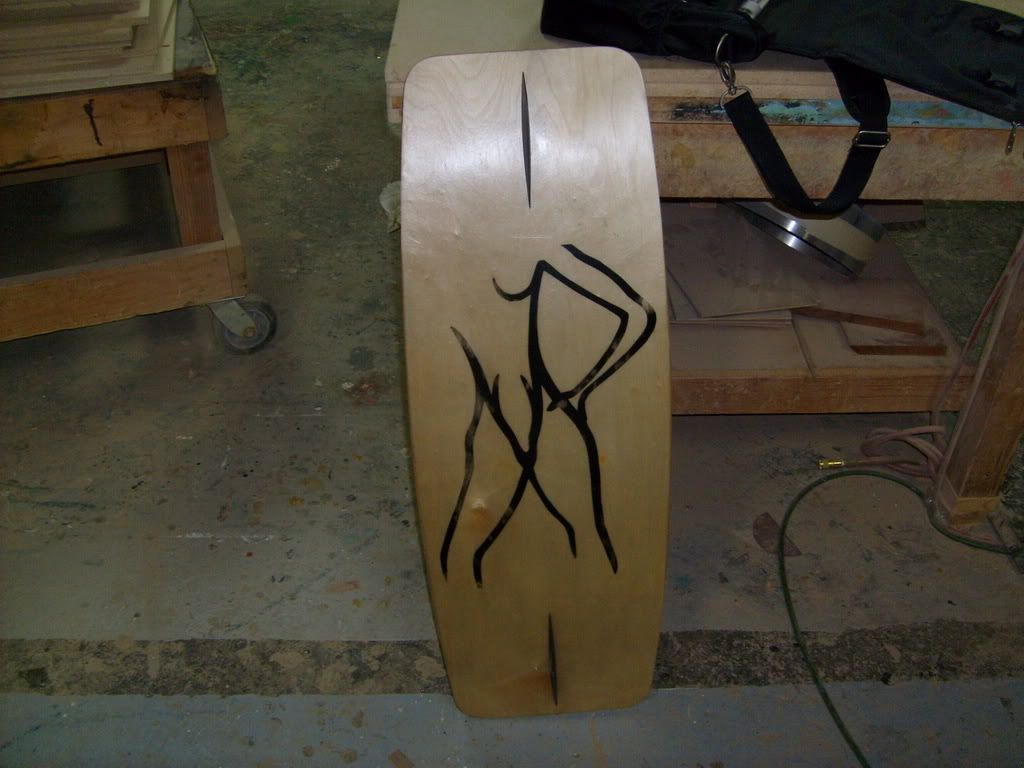

This is the template that I traced onto the glued up board.

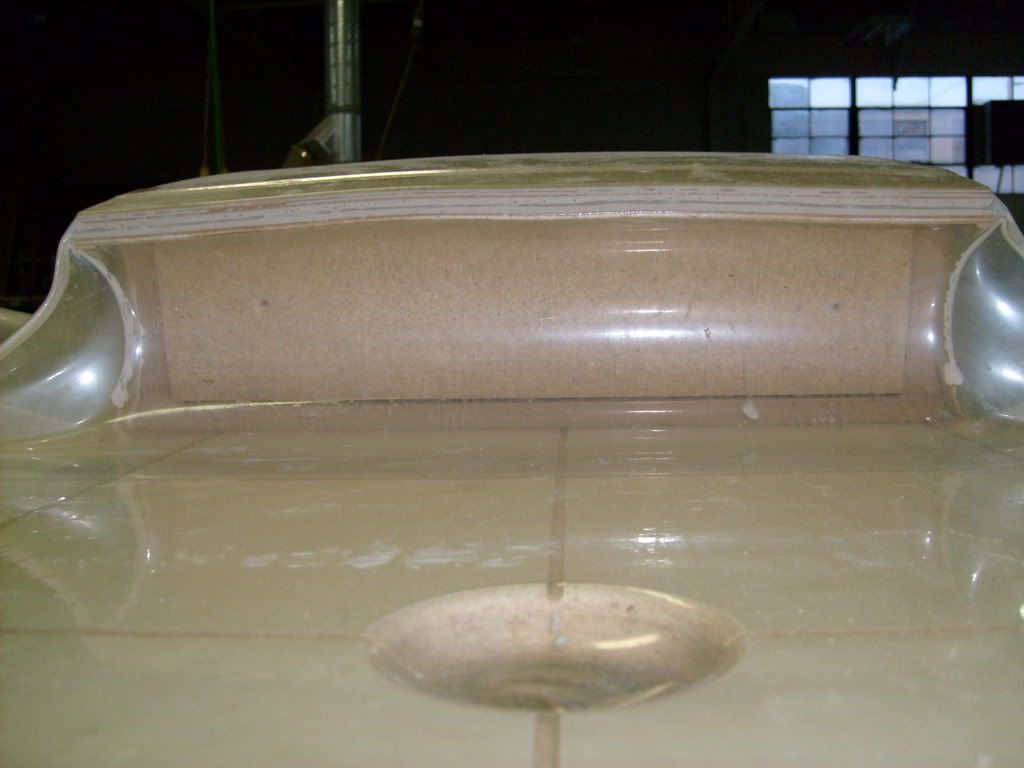

The press:

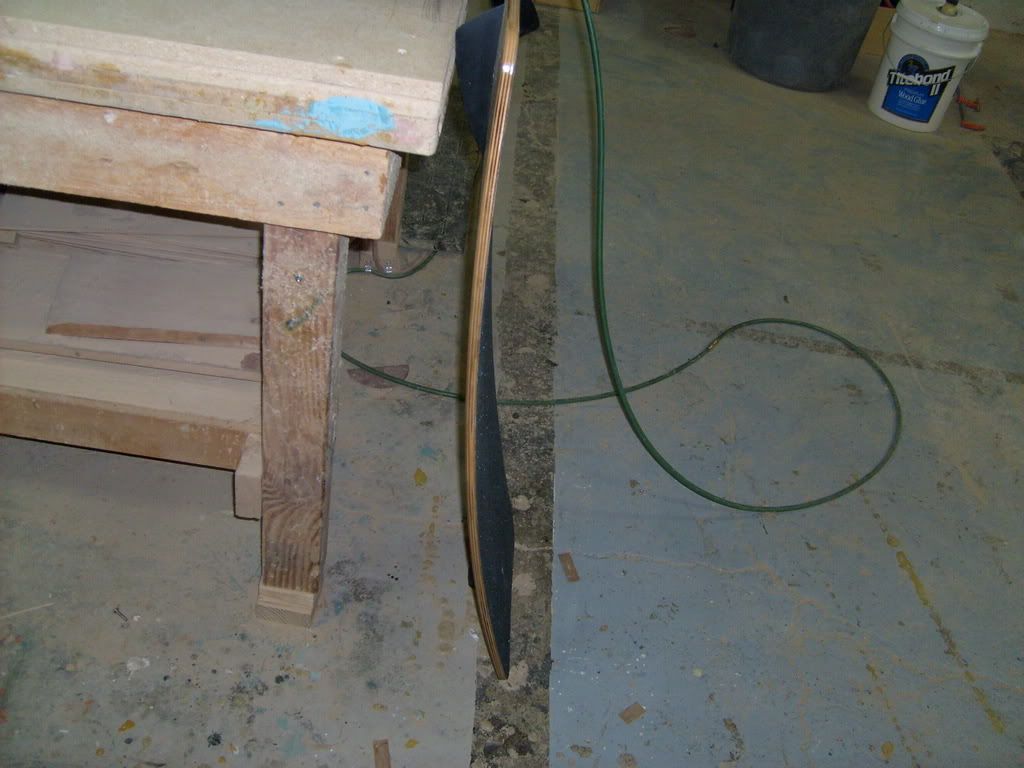

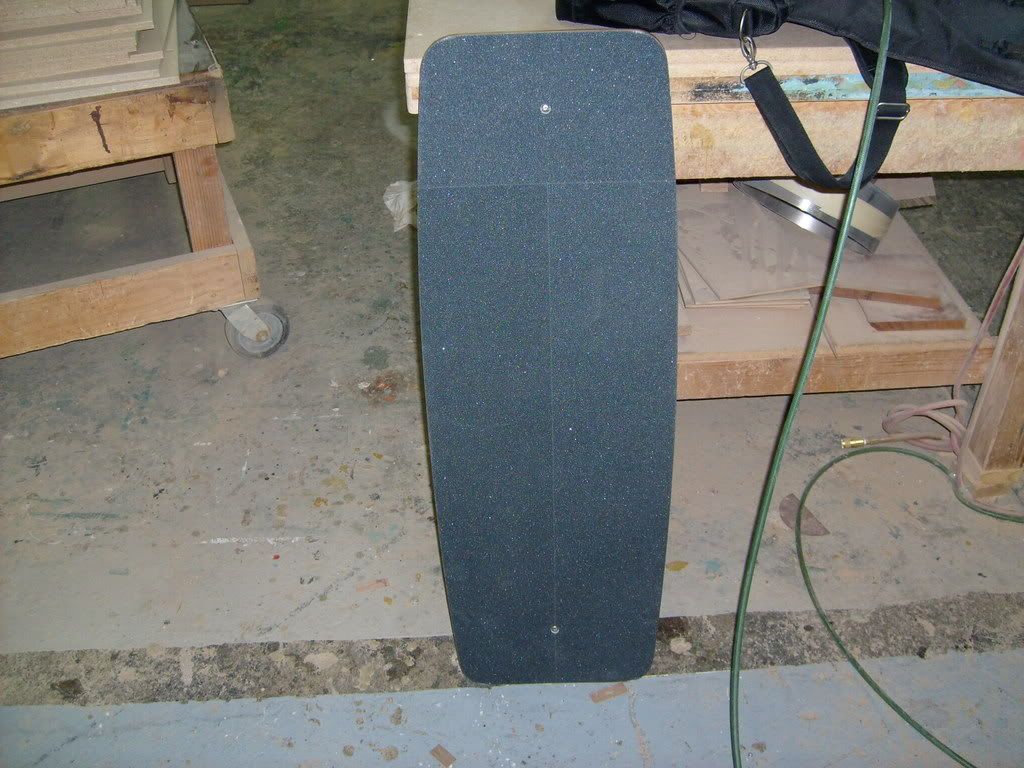

And here is the finished product.
Here is my little boat with the bimini top that I put on this weekend.
 |
|
| Back to top |
|
 |
|
|
Wakebrad
Ladies Man
Joined: 11 Dec 2003
Posts: 12257
City: Dallas
|
| Posted: Mar 31, 2008 7:03 am Post subject: |
|
|
Damn dude that thing looks sick. Almost professionally done. Go 3 stage rocker and concave deck next time. Makes such a big difference when riding.
_________________
You have just entered the twilight zone. |
|
| Back to top |
|
|
jt09
Ladies Man
Joined: 16 Jan 2003
Posts: 22083
City: Austin
|
| Posted: Mar 31, 2008 7:27 am Post subject: |
|
|
that's pretty damn sweet.
why did you put a tranny on your skate? are you going to try and sell it to muck? |
|
| Back to top |
|
|
wake223
Newbie
Joined: 22 Mar 2008
Posts: 29
|
| Posted: Mar 31, 2008 4:07 pm Post subject: |
|
|
| Wakebrad wrote: | | Damn dude that thing looks sick. Almost professionally done. Go 3 stage rocker and concave deck next time. Makes such a big difference when riding. |
I'm definitely going to try a 3 stage next time. It certainly will be easier to make.
I did make the deck concave, but only by 1/4". How much is recommended? |
|
| Back to top |
|
|
electricsnow
Wakeboarder.Commie
Joined: 12 Jan 2003
Posts: 1238
City: anytown, usa
|
| Posted: Apr 02, 2008 2:41 pm Post subject: |
|
|
wow, that's actually really, really cool.
How did you have access to a vacuum press? Was it sort of a homemade jobby? If it was, how did you do it?
people were talking on the other site about vacuum presses...i have some bi-level top decks that I want to fiberglass and some people said that the flex might cause the fiberglass to delam, so a vacuum press would be the best option. I guess you can sort of rig one up but I have not investigated this far.
_________________
J.L.A. Is Snowboarding
_______________________________
These pretzels are making me thirsty.
_______________________________
::www.buttermag.com:::www.cassettewakeskates.com:: |
|
| Back to top |
|
|
wake223
Newbie
Joined: 22 Mar 2008
Posts: 29
|
| Posted: Apr 02, 2008 4:24 pm Post subject: |
|
|
| electricsnow wrote: | wow, that's actually really, really cool.
How did you have access to a vacuum press? Was it sort of a homemade jobby? If it was, how did you do it?
people were talking on the other site about vacuum presses...i have some bi-level top decks that I want to fiberglass and some people said that the flex might cause the fiberglass to delam, so a vacuum press would be the best option. I guess you can sort of rig one up but I have not investigated this far. |
I have access to a vacuum press at work. I've made the bags for them before, that isn't too hard if you can find the right materials to do it with. The vacuum pump on the other hand, I'm not sure about. |
|
| Back to top |
|
|
JoeyJojo
Addict
Joined: 08 Aug 2003
Posts: 754
City: Central Mississippi
|
| Posted: Apr 02, 2008 7:09 pm Post subject: |
|
|
| electricsnow wrote: | wow, that's actually really, really cool.
How did you have access to a vacuum press? Was it sort of a homemade jobby? If it was, how did you do it?
people were talking on the other site about vacuum presses...i have some bi-level top decks that I want to fiberglass and some people said that the flex might cause the fiberglass to delam, so a vacuum press would be the best option. I guess you can sort of rig one up but I have not investigated this far. |
http://www.joewoodworker.com/veneering/welcome.htm
here's something i have been wanting to try. lemme know how it goes =) |
|
| Back to top |
|
|
Nooga678
Wakeboarder.Commie
Joined: 17 Jul 2006
Posts: 1287
City: Chattanooga
|
| Posted: Apr 03, 2008 3:16 am Post subject: |
|
|
| What was the problem with the epoxy? I glued mine with tite bond 3 as well, and was planning on using epoxy to seal it. I thought you just painted it on with a brush? What other options are there? Lots of coats of spar varnish? |
|
| Back to top |
|
|
Wakebrad
Ladies Man
Joined: 11 Dec 2003
Posts: 12257
City: Dallas
|
| Posted: Apr 03, 2008 6:20 am Post subject: |
|
|
wake223, that's a flat deck.
This is a concave deck:
Concave on a wakeskate means the deck is thicker in areas and somewhat shaped like a skateboard with raised rails and a thick kicktail.
_________________
You have just entered the twilight zone. |
|
| Back to top |
|
|
wake223
Newbie
Joined: 22 Mar 2008
Posts: 29
|
| Posted: Apr 03, 2008 5:17 pm Post subject: |
|
|
| Nooga678 wrote: | | What was the problem with the epoxy? I glued mine with tite bond 3 as well, and was planning on using epoxy to seal it. I thought you just painted it on with a brush? What other options are there? Lots of coats of spar varnish? |
I put the epoxy on too thick and it all ran to the ends. I'm not sure what the other options are. |
|
| Back to top |
|
|
wake223
Newbie
Joined: 22 Mar 2008
Posts: 29
|
| Posted: Apr 03, 2008 5:19 pm Post subject: |
|
|
| Wakebrad wrote: | wake223, that's a flat deck.
This is a concave deck:
Concave on a wakeskate means the deck is thicker in areas and somewhat shaped like a skateboard with raised rails and a thick kicktail. |
That makes sense, thank you. I'll have to make a trip to the local shop to see what I need to do to accomplish that on my next try. |
|
| Back to top |
|
|
Jord_civic
Newbie
Joined: 15 Apr 2008
Posts: 1
|
| Posted: Apr 15, 2008 10:08 am Post subject: |
|
|
| hey man can i grab the measurements of the template u drew up? looking at making one myself just cant get it right. |
|
| Back to top |
|
|
wake223
Newbie
Joined: 22 Mar 2008
Posts: 29
|
| Posted: Apr 16, 2008 8:29 pm Post subject: |
|
|
| Jord_civic wrote: | | hey man can i grab the measurements of the template u drew up? looking at making one myself just cant get it right. |
I will look tomorrow to see if I saved the Autocad drawing on my computer at work. I could probably dimension and scan it and post it here for you if I do. |
|
