My radio install


Post new topic   Reply to topic    Wakeboarder Forum Index -> Wakeboard Boat General Discussion
View previous topic :: View next topic
Author Message
ryan351w
Addict
Addict


Joined: 26 Jan 2009
Posts: 532

PostPosted: May 08, 2011 7:41 am    Post subject: My radio install Reply with quote

No complete yet, but I'll keep posting as it gets further along.
But here is what I have done so far.




photo 5.JPG

 Description:
relay
 Filesize:  97.73 KB
 Viewed:  13929 Time(s)



photo 2 (2).JPG

 Description:
i screwed on a piece of Lexan to the bottom to protect the box from moisture
 Filesize:  118.97 KB
 Viewed:  13929 Time(s)



photo 3 (1).JPG

 Description:
12" wet sounds...
 Filesize:  172.18 KB
 Viewed:  13929 Time(s)



photo 4 (1).JPG

 Description:
amp mount
 Filesize:  149.86 KB
 Viewed:  13929 Time(s)



photo 1 (2).JPG

 Description:
Alum extrusion for amp mount
 Filesize:  89.26 KB
 Viewed:  13929 Time(s)


_________________
Whenever I see an $80,000 Wakesetter pulling a tuber, I die a little inside.
Back to top
View user's profile Send private message
Okie Boarder
Ladies Man
Ladies Man


Joined: 03 Mar 2008
Posts: 10054
City: Edmond

PostPosted: May 09, 2011 11:25 am    Post subject: Reply with quote

Looking pretty good. Aluminum extrusion is a little different. I've not seen that used before, but seems like a pretty clever idea.
_________________
If love is blind, why is lingerie so popular?
Back to top
View user's profile Send private message Yahoo Messenger
ryan351w
Addict
Addict


Joined: 26 Jan 2009
Posts: 532

PostPosted: May 09, 2011 5:26 pm    Post subject: Reply with quote

Well the price was right..... Laughing It will allow me to mount the relay, fuses, distribution block, etc etc.
Just got my WS-420 today.
Should be getting the in-boat speakers this weekend. Then its just wiring time.

_________________
Whenever I see an $80,000 Wakesetter pulling a tuber, I die a little inside.
Back to top
View user's profile Send private message
jjaszkow
Wakeboarder.Commie
Wakeboarder.Commie


Joined: 25 Jul 2006
Posts: 2124
City: Some Airport

PostPosted: May 10, 2011 7:54 pm    Post subject: Reply with quote

I like the aluminum extrusion idea quite a bit. Should look nice when loaded up, and is a bit different than the "amp in MDF box or on MDF board" amp racks that most people seem to be doing.

One thing on the lexan on the bottom of the sub box. I suspect that you may find that moisture gets captured between the lexan and the box. If you can find a way of sealing the edges, that would help, but I am not certain how you would do that with the carpet.
Back to top
View user's profile Send private message
ryan351w
Addict
Addict


Joined: 26 Jan 2009
Posts: 532

PostPosted: May 11, 2011 3:32 am    Post subject: Reply with quote

jjaszkow, Thanks man. Thats a good point about the lexan.... hmmmmm
_________________
Whenever I see an $80,000 Wakesetter pulling a tuber, I die a little inside.
Back to top
View user's profile Send private message
ryan351w
Addict
Addict


Joined: 26 Jan 2009
Posts: 532

PostPosted: May 11, 2011 3:34 am    Post subject: Reply with quote

Amps mounted.
Picked up the distribution blocks yesterday along with a bunch of power wire. So that is next.





 Description:
Terrible pic...
 Filesize:  194.35 KB
 Viewed:  13717 Time(s)


_________________
Whenever I see an $80,000 Wakesetter pulling a tuber, I die a little inside.
Back to top
View user's profile Send private message
PimpinD2
Wakeboarder.com Freak
Wakeboarder.com Freak


Joined: 20 Jul 2006
Posts: 3182
City: Orlando, FL

PostPosted: May 11, 2011 6:55 am    Post subject: Reply with quote

jesus what are you gonna run?
_________________
stay clean, like me
www.hubble.com
Back to top
View user's profile Send private message AIM Address
ryan351w
Addict
Addict


Joined: 26 Jan 2009
Posts: 532

PostPosted: May 11, 2011 8:29 am    Post subject: Reply with quote

500watts to the wetsounds sub
75x4 for the boat
150x2 to the PRO-60s

_________________
Whenever I see an $80,000 Wakesetter pulling a tuber, I die a little inside.
Back to top
View user's profile Send private message
PimpinD2
Wakeboarder.com Freak
Wakeboarder.com Freak


Joined: 20 Jul 2006
Posts: 3182
City: Orlando, FL

PostPosted: May 11, 2011 9:41 am    Post subject: Reply with quote

couldnt you have gone with 2 wetsound amps over 3 polk amps?
_________________
stay clean, like me
www.hubble.com
Back to top
View user's profile Send private message AIM Address
ryan351w
Addict
Addict


Joined: 26 Jan 2009
Posts: 532

PostPosted: May 11, 2011 12:00 pm    Post subject: Reply with quote

Oh yeah, but i got all 3 for 600.00 marine certified. I had a hard time justifying 900 for one amp.....
_________________
Whenever I see an $80,000 Wakesetter pulling a tuber, I die a little inside.
Back to top
View user's profile Send private message
ryan351w
Addict
Addict


Joined: 26 Jan 2009
Posts: 532

PostPosted: May 14, 2011 4:17 am    Post subject: Reply with quote

couple more....

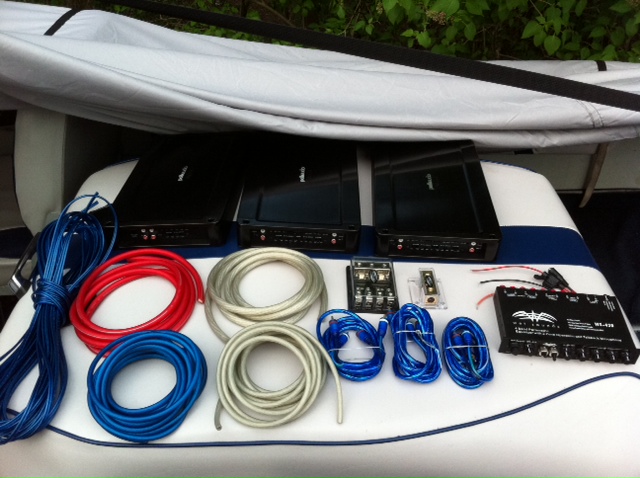

photo 1 (3).JPG

 Description:
parts
 Filesize:  127.42 KB
 Viewed:  13491 Time(s)

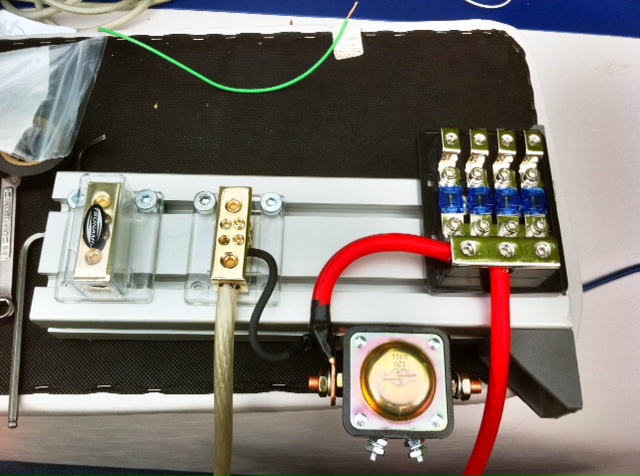

photo 4 (2).JPG

 Description:
power block
 Filesize:  128.77 KB
 Viewed:  13491 Time(s)



photo 3 (2).JPG

 Description:
power block(s)
 Filesize:  114.74 KB
 Viewed:  13491 Time(s)



photo (3).JPG

 Description:
WS-420....new carpet this year too!
 Filesize:  120.39 KB
 Viewed:  13491 Time(s)


_________________
Whenever I see an $80,000 Wakesetter pulling a tuber, I die a little inside.
Back to top
View user's profile Send private message
Okie Boarder
Ladies Man
Ladies Man


Joined: 03 Mar 2008
Posts: 10054
City: Edmond

PostPosted: May 14, 2011 6:03 am    Post subject: Reply with quote

That's coming along nicely. I like the distribution block you chose. Looks like you located your 420 right where I put my eq.
_________________
If love is blind, why is lingerie so popular?
Back to top
View user's profile Send private message Yahoo Messenger
ryan351w
Addict
Addict


Joined: 26 Jan 2009
Posts: 532

PostPosted: May 14, 2011 6:09 am    Post subject: Reply with quote

thanks man.
you know I went to 3-4 different stores looking for a distribution block I liked and most people wanted 25-40 for one WITHOUT fuses! I got the fuse able one for 23 and the non for 10, from a store that used to be notorious for being overpriced. So I found my supply shop.
I'm ok with the 420 location; I may end up flipping it over. The way the offsets on the mounts are would give me more room to adj the settings and see which I'm actually adjusting. We'll see.

_________________
Whenever I see an $80,000 Wakesetter pulling a tuber, I die a little inside.
Back to top
View user's profile Send private message
Brit Rider
Wakeboarder.com Freak
Wakeboarder.com Freak


Joined: 29 Mar 2004
Posts: 3347
City: Cheshire, England

PostPosted: May 14, 2011 9:28 am    Post subject: Reply with quote

ryan351w, Looks like you're making some good progress. Are you definitely not wanting the EQ nearer the helm? How are you going to mange the tower/in-boat volume quickly?

Do you have an isolator switch between the battery and your main power supply to your amps? If you leave the set up for more than a few weeks at a time you will want this in place to avoid any dead batts.

_________________
www.AxisBoats.co.uk | www.Malibu-Boats.co.uk
Back to top
View user's profile Send private message Visit poster's website MSN Messenger
ryan351w
Addict
Addict


Joined: 26 Jan 2009
Posts: 532

PostPosted: May 14, 2011 9:44 am    Post subject: Reply with quote

Brit Rider, Thanks.
The eq is in the exact spot the old radio was.... Its right by the left knee of the driver.


No I don't, but the boat doesn't sit unused for longer than 1-2days maybe once the season starts. And I trailer everywhere I go; so even if I don't get out after a while I can easily take out the batt, or connect to a trickle charger.

_________________
Whenever I see an $80,000 Wakesetter pulling a tuber, I die a little inside.
Back to top
View user's profile Send private message
ryan351w
Addict
Addict


Joined: 26 Jan 2009
Posts: 532

PostPosted: May 14, 2011 7:10 pm    Post subject: Reply with quote

Alright, pretty much done.

All I've got left is to drill a couple holes in the tower for the wires.




photo (6).JPG

 Description:
overall. Obviously the lighting is crappy
 Filesize:  136.05 KB
 Viewed:  13415 Time(s)



photo (4).JPG

 Description:
Power block done
 Filesize:  105.42 KB
 Viewed:  13415 Time(s)

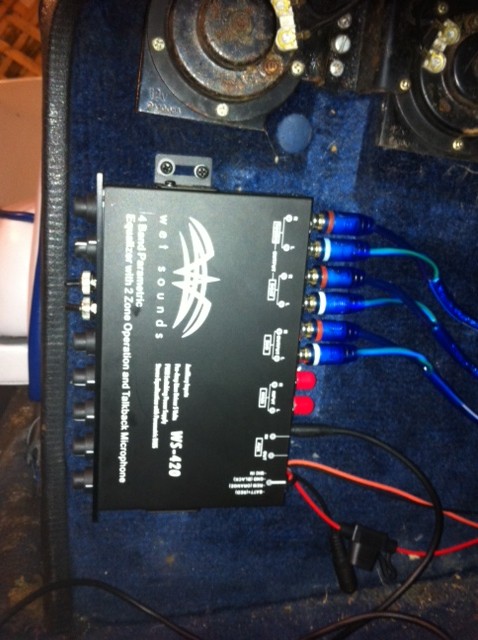

photo (5).JPG

 Description:
ws-420
 Filesize:  94.06 KB
 Viewed:  13415 Time(s)


_________________
Whenever I see an $80,000 Wakesetter pulling a tuber, I die a little inside.
Back to top
View user's profile Send private message
core-rider
Addict
Addict


Joined: 12 Jan 2003
Posts: 526
City: Huntsville, AL

PostPosted: May 14, 2011 9:41 pm    Post subject: Reply with quote

So I'm lost on what the Ford style relay is for. It looks as if you have the coil hooked up, but only one side of the contacts.
_________________
Jason
www.wakefactory.net

--Southern Fried--
Back to top
View user's profile Send private message Send e-mail Visit poster's website
ryan351w
Addict
Addict


Joined: 26 Jan 2009
Posts: 532

PostPosted: May 15, 2011 5:06 am    Post subject: Reply with quote

core-rider, I'm using the relay to cut off power between the boat batt and the radio batt when the boat isn't running. So when the key is in the RUN position the relay closes and allows current to pass through to the 2nd batt. That one wire is the trigger wire from the key to close the circuit.
_________________
Whenever I see an $80,000 Wakesetter pulling a tuber, I die a little inside.
Back to top
View user's profile Send private message
core-rider
Addict
Addict


Joined: 12 Jan 2003
Posts: 526
City: Huntsville, AL

PostPosted: May 15, 2011 3:02 pm    Post subject: Reply with quote

Okay, so your own DIY isolator. Good idea!
_________________
Jason
www.wakefactory.net

--Southern Fried--
Back to top
View user's profile Send private message Send e-mail Visit poster's website
ryan351w
Addict
Addict


Joined: 26 Jan 2009
Posts: 532

PostPosted: May 15, 2011 3:32 pm    Post subject: Reply with quote

You got it! Thanks!
_________________
Whenever I see an $80,000 Wakesetter pulling a tuber, I die a little inside.
Back to top
View user's profile Send private message
chawk610
Addict
Addict


Joined: 06 Jul 2010
Posts: 668
City: Fort Worth

PostPosted: May 16, 2011 4:09 am    Post subject: Reply with quote

sweet set up...
_________________
'08 Mobius LS
Back to top
View user's profile Send private message
Okie Boarder
Ladies Man
Ladies Man


Joined: 03 Mar 2008
Posts: 10054
City: Edmond

PostPosted: May 16, 2011 8:17 am    Post subject: Reply with quote

ryan351w wrote:
thanks man.
you know I went to 3-4 different stores looking for a distribution block I liked and most people wanted 25-40 for one WITHOUT fuses! I got the fuse able one for 23 and the non for 10, from a store that used to be notorious for being overpriced. So I found my supply shop.
I'm ok with the 420 location; I may end up flipping it over. The way the offsets on the mounts are would give me more room to adj the settings and see which I'm actually adjusting. We'll see.


I've gotten a lot of my stuff from HiFi Sound Connection online...really good pricing and quick delivery.

_________________
If love is blind, why is lingerie so popular?
Back to top
View user's profile Send private message Yahoo Messenger
TurboFan
Newbie
Newbie


Joined: 16 May 2011
Posts: 17

PostPosted: May 19, 2011 11:52 am    Post subject: Reply with quote

ryan351w wrote:
jjaszkow, Thanks man. Thats a good point about the lexan.... hmmmmm


Bead of clear exterior silicon around the box where the lexan meets up. Use a butter knife or similar to remove excess silicon once the lexan is in place. Make sure to silicon under the screw holes so the screws are sealed as well.
Back to top
View user's profile Send private message
