New SANTE and stereo question

wakeborder5 · Soul Rider Joined: 12 Jan 2003 Posts: 279 City: Commerce

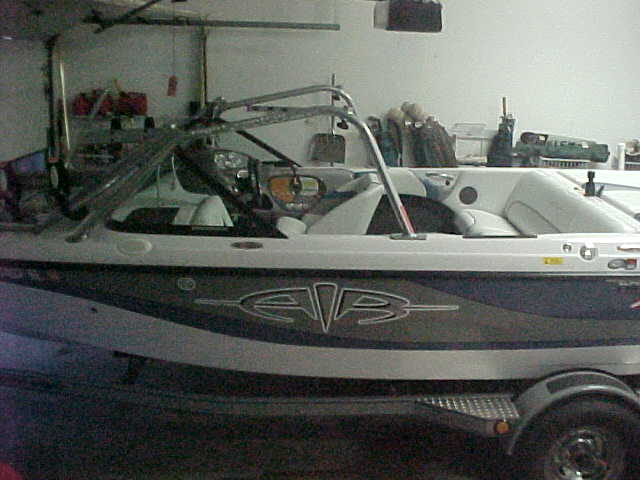

Picked this up today and it has the regular kicker TE stereo. There are six little dials on the amp, and was wondering what exactly they do. Sorry about pic quality, only had the old camera

wakeborder5 · Soul Rider Joined: 12 Jan 2003 Posts: 279 City: Commerce

Here is an interior pic

wakeborder5 · Soul Rider Joined: 12 Jan 2003 Posts: 279 City: Commerce

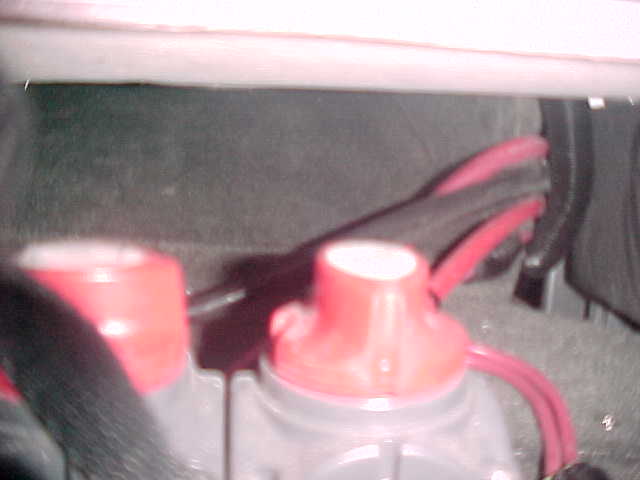

Also, where is the second battery located? I know about the battery in the compartment behind the drivers seat, but where is the second one? I got the TE so it is supposed to have dual batteries

BIGMAC · Posted: May 30, 2003 9:11 pm Post subject:

I think it's in the bow.

Jack V · Outlaw Joined: 19 Feb 2003 Posts: 207

The second battery is under the rear left corner seat. There is now a screwed down board to access that. Just lift up the seat cushion and it is there.

wakeborder5 · Soul Rider Joined: 12 Jan 2003 Posts: 279 City: Commerce

I looked in the bow and didn't find one.

Also, on the amp it says "AMP 2 BASS BOOST," I don't have 2 amps, so does that mean only the ones with AMP 1 written affect anything?

What does AMP "1 GAIN" and "AMP 2 GAIN" or "AMP 1 X-OVER FREQ." mean?

Jack V · Outlaw Joined: 19 Feb 2003 Posts: 207

Did you find the second battery case yet? The gain is how much power you are using out of the amp. Wierd anaology but look at it like this: when you adjust your powerwasher for different pressures - you are doing the same type of thing with the amp. Don't worry about the second amp part. You can tap a second amp into the kicker one if you had tower speakers. Have fun with the new toy!

wakeborder5 · Soul Rider Joined: 12 Jan 2003 Posts: 279 City: Commerce

Ok, sounds good, it is going to rain most of the day and want to go out so bad.

Thanks

Phaeton · Addict Joined: 12 Jan 2003 Posts: 572 City: Redding

wakeborder5, That is a four channel amp. They way Kicker sets them up is there are actually two amps.
Amp 1 is Channel 1-2
Amp 2 is channel 3-4

The gain controls the out put of the amp. The more gain the more power and distortion.
The amp has a variable Freq. You would set it depending on what it is driving. Lower for subs and higher for mids tweets.

wakeborder5 · Soul Rider Joined: 12 Jan 2003 Posts: 279 City: Commerce

What do the channels do?

Phaeton · Addict Joined: 12 Jan 2003 Posts: 572 City: Redding

Depends on how the amp is wired and what is hooked up to the channels.
Basic set up is

Channel 1 front left speaker
Channel 2 front right speaker
Channel 3 rear left speaker
Channel 4 rear right speaker

Like I said that is just the basic set up.

wakeborder5 · Soul Rider Joined: 12 Jan 2003 Posts: 279 City: Commerce

What controls the sub then?

Phaeton · Addict Joined: 12 Jan 2003 Posts: 572 City: Redding

wakeborder5, If the amp is running the speakers and a sub. The speakers will be running off the front channels 1-2 the sub will be running off the rear channels.
