 Posted: Aug 28, 2006 10:43 am Post subject: Custom Seating - Direct Drives |
 |
|
I've seen a bunch of posts where people have converted the back seat of their DD's into a sun deck. Has anyone tried to do sort of wrap around seating like a V Drive, or sort of like the Malibu XTI? I'm thinking something that would allow another person to sit on the side or looking back opposite the driver and be stretched out... Here's a hack job of what I mean.
|
| Description: |
|
| Filesize: |
43.9 KB |
| Viewed: |
6062 Time(s) |
|
|
| Back to top |
|
 |
|
|
_Jason_
Soul Rider
Joined: 15 Dec 2004
Posts: 275
|
| Posted: Aug 28, 2006 1:14 pm Post subject: |
|
|
| It would work.. but you have to think of leg room. I mean if you put an extra wrap around seat there then the engine will be in total way of where your legs rest. I personally would make a seat right behind the driver... facing the wake. but just my opinon.
|
|
| Back to top |
|
|
ontrider
Ladies Man
Joined: 30 Jul 2003
Posts: 16491
City: Russia
|
| Posted: Aug 28, 2006 1:33 pm Post subject: |
|
|
| Quote: |
I personally would make a seat right behind the driver... facing the wake
|
Yeah, that's pretty much what I mean except with it extended you could lay back with your legs up, or sit at the side with your legs down and still watch riders while sitting sideways.
|
|
| Back to top |
|
|
ontrider
Ladies Man
Joined: 30 Jul 2003
Posts: 16491
City: Russia
|
| Posted: Aug 28, 2006 1:33 pm Post subject: |
|
|
| Quote: |
I personally would make a seat right behind the driver... facing the wake
|
Yeah, that's pretty much what I mean except with it extended you could lay back with your legs up, or sit at the side with your legs down and still watch riders while sitting sideways.
|
|
| Back to top |
|
|
Jon
Wakeboarder.Commie
Joined: 12 Jan 2003
Posts: 1176
|
| Posted: Aug 28, 2006 1:44 pm Post subject: |
|
|
Supra came out with this on their Comp 20 and Launch 20. This is actually built in to the deck and has a cooler located under this seat. This isn't just a jump seat. You could probably built a jump seat for any boat fairly easy though.
|
| Description: |
|
| Filesize: |
10.8 KB |
| Viewed: |
5994 Time(s) |
|
|
| Back to top |
|
|
Wakebrad
Ladies Man
Joined: 11 Dec 2003
Posts: 12257
City: Dallas
|
| Posted: Aug 28, 2006 2:07 pm Post subject: |
|
|
I think making a jumpseat would be the best option. That would make sure you have legroom for both the person sitting behind the driver and the person in the back seat. In our DD we always used to keep the cooler there but what you could do is just built in a cooler into the jumpseat like Supra did. I can't think of many situations where you would want to sit facing sideways rather than backwards also.
_________________
You have just entered the twilight zone. |
|
| Back to top |
|
|
ontrider
Ladies Man
Joined: 30 Jul 2003
Posts: 16491
City: Russia
|
| Posted: Aug 28, 2006 2:46 pm Post subject: |
|
|
| Jon, that looks pretty cool, I hadn't seen that configuration before.
|
|
| Back to top |
|
|
Roger
Outlaw
Joined: 16 Aug 2005
Posts: 145
City: Dallas
|
|
| Back to top |
|
|
dba4life
Outlaw
Joined: 20 Feb 2003
Posts: 129
|
| Posted: Aug 28, 2006 3:33 pm Post subject: |
|
|

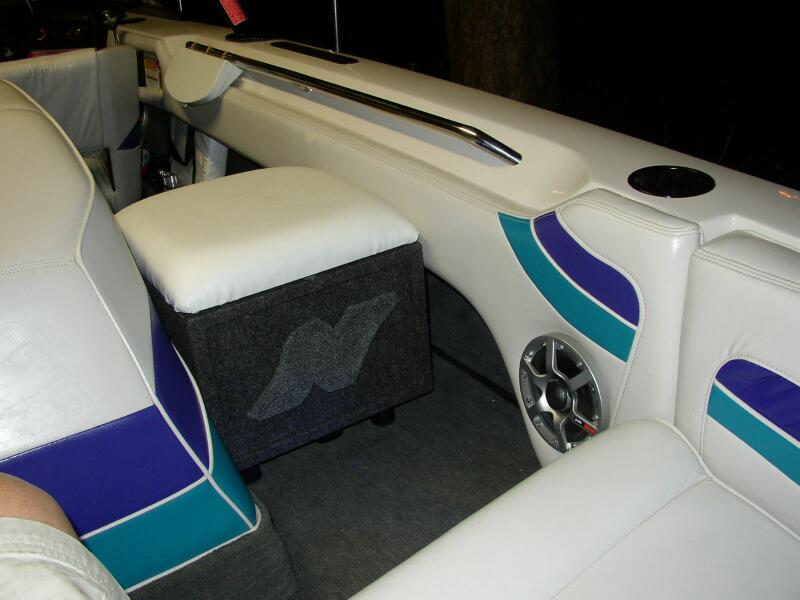

I built this 12in subwoofer/seat for that area.
|
| Description: |
|
| Filesize: |
47.87 KB |
| Viewed: |
5957 Time(s) |
|
|
| Back to top |
|
|
gza
Newbie
Joined: 05 Dec 2005
Posts: 2
|
| Posted: Aug 28, 2006 3:44 pm Post subject: |
|
|
| We use that space for ballast
|
|
| Back to top |
|
|
chavez
Ladies Man
Joined: 22 Sep 2003
Posts: 27375
City: Roseville
|
| Posted: Aug 28, 2006 3:48 pm Post subject: |
|
|
Roger, that is what I was thinking, just the more modern looking versions:
_________________
| Quote: | | That's Mr. Gingermex to you a$$hole. |
RIP MHL 04/25/1958 - 01/11/2006 |
|
| Back to top |
|
|
ontrider
Ladies Man
Joined: 30 Jul 2003
Posts: 16491
City: Russia
|
| Posted: Aug 28, 2006 3:54 pm Post subject: |
|
|
| gza wrote: | | We use that space for ballast |
That's one of the reasons I was thinking of wrap around seating... because the ballast on the side of the engine compartment could then be hidden (at least on one side), and you would have feet on it anyways with a single seat.
|
|
| Back to top |
|
|
Wakebrad
Ladies Man
Joined: 11 Dec 2003
Posts: 12257
City: Dallas
|
| Posted: Aug 28, 2006 6:07 pm Post subject: |
|
|
| Quote: |
That's one of the reasons I was thinking of wrap around seating... because the ballast on the side of the engine compartment could then be hidden (at least on one side), and you would have feet on it anyways with a single seat.
|
Oh, if you're planning on putting ballast on the sides of the engine then I would do wrap around seating on both sides. How much does the locker hold? If you put some lead plates under the backseat that might be enough rear ballast. Then get a sack for the locker and maybe one for the bow.

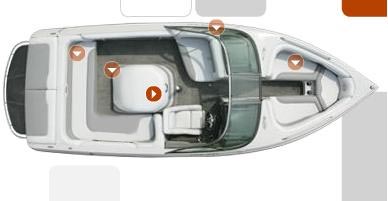

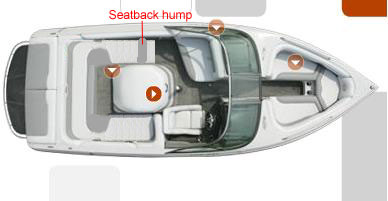

If you really need ballast on the sides of the engine I'd do it like this:
|
| Description: |
|
| Filesize: |
13.62 KB |
| Viewed: |
5916 Time(s) |
_________________
You have just entered the twilight zone. |
|
| Back to top |
|
|
ontrider
Ladies Man
Joined: 30 Jul 2003
Posts: 16491
City: Russia
|
|
| Back to top |
|
|
WakeBoarder44
Wakeboarder.Commie
Joined: 21 Apr 2004
Posts: 1107
|
| Posted: Aug 29, 2006 4:40 am Post subject: |
|
|
| ontrider wrote: | | Yeah, that makes sense too but not sure if I necessarily want to be crawling over seats... |
If you have balast there, you need to crawl over it at as well?
or ame I missing something...
_________________
* riding finless teaches you to get your edge down properly, when you do it with fins, you'll be able to cut like OJ Simpson
* Hesitation leads to pain! |
|
| Back to top |
|
|
Erik
Old School Freak
Joined: 10 Mar 2003
Posts: 2830
City: Boston MA, Wolfeboro NH, DelRay FL, Montego Bay, Jamaica
|
| Posted: Aug 29, 2006 4:48 am Post subject: |
|
|
I think building something in the back is a good idea. It helped us out a lot with our direct drive... but building something that wraps around, and affects the walkthrough area on either side of the engine is really going to kill the already limited space you have in there. In my opinion anyway. Unless you built it to be long, low and flat. And carpeted. Something you can walk on, and climb over - and in a pinch - sit on.
I assume you've seen this project that I completed, right?
http://www.the2001.com/modules.php?set_albumName=album03&op=modload&name=gallery&file=index&include=view_album.php
Last edited by Erik on Aug 29, 2006 6:08 am; edited 1 time in total |
|
| Back to top |
|
|
Wakebrad
Ladies Man
Joined: 11 Dec 2003
Posts: 12257
City: Dallas
|
| Posted: Aug 29, 2006 5:58 am Post subject: |
|
|
| Quote: |
Yeah, that makes sense too but not sure if I necessarily want to be crawling over seats...
|
crawling over seats is better than crawling over fat sacs. Because you can step on seats with confidence. You can't add weight to that 1 wrap around side without duplicating it on the other side.
How much weight will the trunk fit? If you can get 500#s back there you could load up a couple hundred pounds of lead plates under the backseat and you wouldn't need side ballast. say 700 in the back and 700 in the front. The wake would be rampier than with more weight in the back but at least you didn't compromise any seating. The wake will still be good though.
_________________
You have just entered the twilight zone. |
|
| Back to top |
|
|
gza
Newbie
Joined: 05 Dec 2005
Posts: 2
|
| Posted: Aug 29, 2006 5:04 pm Post subject: |
|
|
At the moment we run three sacks, one each side of the engine -220 litres each and the the third up in the ski locker. Not sure how much that is but must be atleast another 200 litres. Plus we have around 120 kgs of lead which most of the time live in the rear underneath the seats but have to be moved towards the front of the boat if we have moe than 4 people onboard. This setup and 8 people on Sat morning made a huge wake.
If you made the wraparound seats would you want peolple stepping on the vinyl all the time or just make them carpeted?
|
|
