PostPosted: Feb 19, 2011 7:13 pm    Post subject: PVC Winch Reply with quote

So im thinking of building a winch and my first idea was a lawn mower but making one out of PVC would be better. Has anyone done this? Does anyone know if it is strong enough and if it will work? Ive drawn some designs but im no artist.

thanks

_________________
If Winnie's the poo, then Pookie's the sh*t.
Back to top
View user's profile Send private message AIM Address MSN Messenger
GnarShredd
Wakeboarder.Commie
Wakeboarder.Commie


Joined: 16 Jun 2009
Posts: 2310
City: St Pete.

PostPosted: Feb 22, 2011 7:24 am    Post subject: Reply with quote

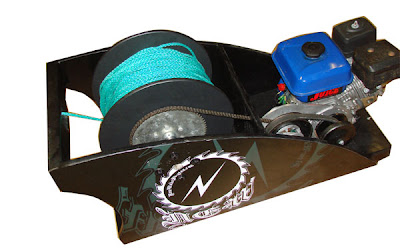

No way, even if it doesn't break (which it will, especially with that design), PVC will flex WAY too much. At the BARE minimum, solid panels of wood might work (I think the NEW brand winch was built out of wood and held-up ok, I included a picture so you can get an idea of it).




What's keeping you from using steel or aluminum? A good frame is worth-while, You don't want your winch to fall apart and hurt someone, not to mention possibly damage the motor, spool, chain, or any of the other pieces that could be expensive and time-consuming to replace.

Wakeskaters are on a tight budget more often than not and if there was a way to build something cheaper than a metal frame, (with the exception of NEW) I'm sure someone would have done it by now.
Back to top
View user's profile Send private message
supermanotorious
Soul Rider
Soul Rider


Joined: 10 May 2010
Posts: 345
City: Phoenix

PostPosted: Feb 22, 2011 7:38 am    Post subject: Reply with quote

Gnar is right, PVC would bend and someone could get really hurt, wood will probably work as it has great tensile strength
_________________
☆PHOENIX WINCH☆
FACEBOOK
YOUTUBE
Back to top
View user's profile Send private message Send e-mail Visit poster's website AIM Address
Pookie94
Criminal
Criminal


Joined: 30 Jul 2010
Posts: 65
City: Maumee

PostPosted: Feb 22, 2011 11:38 am    Post subject: Reply with quote

I dont have the proper tools to weld and a steel or aluminum frame would cost way to much for me.... ill stick to the wood design. Would 3/4in plywood be good?
_________________
If Winnie's the poo, then Pookie's the sh*t.
Back to top
View user's profile Send private message AIM Address MSN Messenger
GnarShredd
Wakeboarder.Commie
Wakeboarder.Commie


Joined: 16 Jun 2009
Posts: 2310
City: St Pete.

PostPosted: Feb 22, 2011 11:55 am    Post subject: Reply with quote

Pookie94, You could probably get away with that, just make sure it's braced well on the inside, painted, and sealed well so it doesn't fall apart on you. You might even want to throw some fiberglass over it if you want it to last a really long time.
